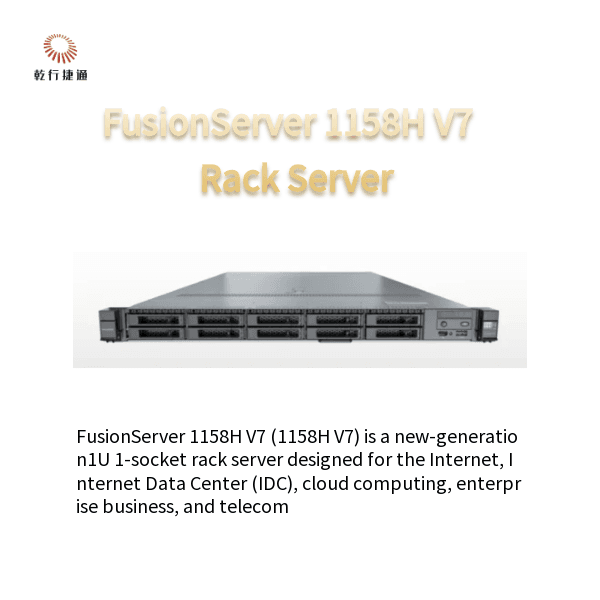

Сервер стоечный Huawei FusionServer 1158H V7, 1U, односокетный, 10 отсеков накопителей. Производитель — Huawei. Форм-фактор: 1U rack server. Габариты (В × Ш × Г): 43.5 mm × 447 mm × 798 mm (1.71 in. × 17.60 in. × 31.42 in.). Вентиляторные модули: 8 x hot-swappable counter-rotating fan modules in N+1 redundancy.
| Габариты (В × Ш × Г) | 43.5 mm × 447 mm × 798 mm (1.71 in. × 17.60 in. × 31.42 in.) |
| Вентиляторные модули | 8 x hot-swappable counter-rotating fan modules in N+1 redundancy |
| Форм-фактор | 1U rack server |
| Комплект для монтажа | L-shaped, adjustable, and holding rails |
| Локальное хранилище | Hot-swappable and flexible drive configurations: • 10 x 2.5" SAS/SATA/SSDs (up to 4 x NVMe SSDs or 8 x SAS/SATA drives) • 10 x 2.5" SAS/SATA/NVMe drives/SSDs • 2 x M.2 SSDs (SATA/NVMe) |
| Управление | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. • It is optional to configu |
| Операционные системы | FusionOS, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Расширение PCIe | 5 x PCIe expansion slots, including 2 x FlexIO expansion slot dedicated for an OCP 3.0 NIC and 3 x standard PCIe slots, one of which supports PCIe 5.0 |
| Блок питания | 900W Platinum/Titanium hot-swappable power supply, 1500W/2000W Platinum power supply, supports 1+1 redundancy |
| Поддержка RAID | RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Функции безопасности | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0*, security panel, secure boot, and chassis cover opening detection |
| Память | 24 x DDR5 DIMMs slots, delivering up to 4800 MT/s |
| Рабочая температура | 5°C to 40°C (41°F to 104°F), compliant with ASHRAE Classes A1 to A3°C |
| Процессор | 1 x 4th Gen AMD® EPYC 9004 Series processors (Genoa), with up to 400 W TDP per processor |
| Сетевое подключение | 2 x OCP 3.0 NIC, which can be configured as required and supports hot swap and PCIe 5.0 |
