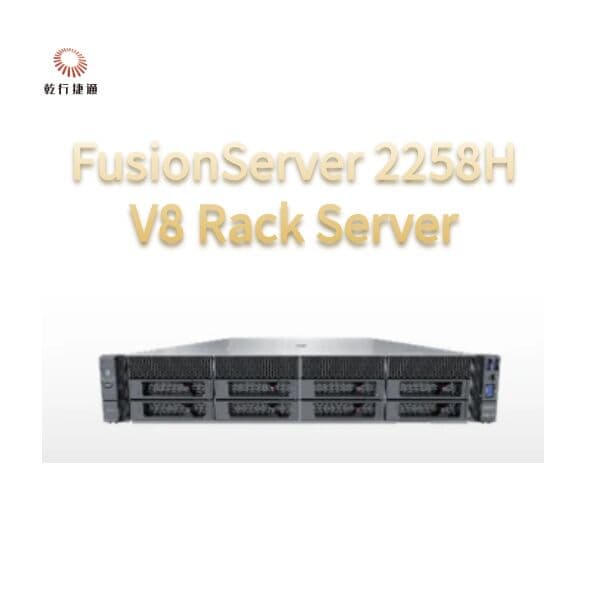

Сервер стоечный Huawei FusionServer 2258H V8, процессоры Xeon. Производитель — Huawei. Форм-фактор: 2U rack server. Габариты (В × Ш × Г): 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.). Вентиляторные модули: Four 80 x 80 hot-swappable counter-rotating fan modules in N+1 redundancy.
| Габариты (В × Ш × Г) | 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
| Вентиляторные модули | Four 80 x 80 hot-swappable counter-rotating fan modules in N+1 redundancy |
| Форм-фактор | стоечный сервер 2U |
| Комплект для монтажа | L-shaped, adjustable, and holding rails |
| Локальное хранилище | "Hot-swappable and flexible drive configurations: - 8 x 2.5"" SAS/SATA drives - 8/16/24 x SAS/SATA/NVMe drives* - 8 x 2.5“ NVMe drives, Support hard raid* - 8 x 3.5"" SAS/SATA/NVMe drives - 2 x M.2 SSDs (SAS/SATA)" |
| Управление | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. - The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified manage-ment. It is optional to configur |
| Операционные системы | xFusion FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware vSphere, Red Hat Enterprise Linux, Oracle, and Ubuntu |
| Модуль расширения PCIe и вентиляторов | 10 x PCIe expansion slots; support PCIe 5.0 |
| Поддержка RAID | RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitor for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Функции безопасности | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection |
| Память | 24 x DDR5 DIMMs, delivering up to 6400 MT/s |
| Рабочая температура | 5°C to 45°C (41°F to 113°F), compliant with ASHRAE Classes A1 to A4°C |
| Процессор | 2 x5th-Gen EPYC™ 9005 series (Turin) processor with up to 500 W TDP per processor |
| Сетевое подключение | 2 x OCP 3.0 NICs, which can be configured as required; support hot swap and PCIe 5.0 |
