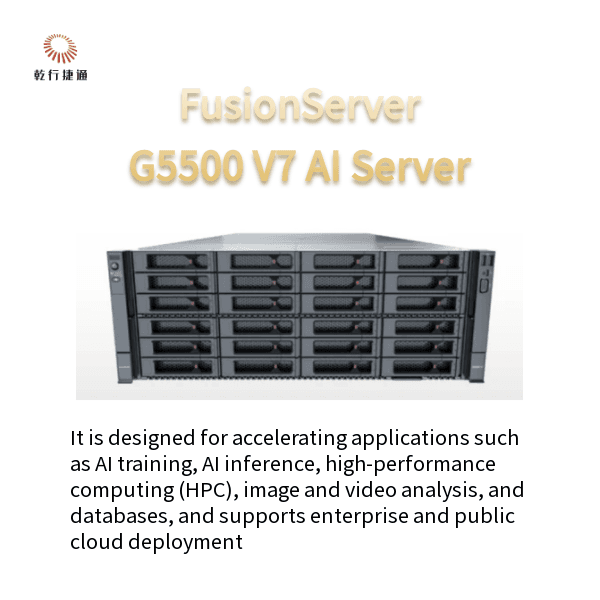

Сервер для ИИ Huawei FusionServer G5500 V7, 4U, 2× Intel Xeon Scalable 4/5-го поколения. Производитель — Huawei. Форм-фактор: 4U AI server. Графические ускорители: 10 × dual-width GPU cards. Чипсет: Emmitsburg PCH. Сетевое подключение: Multiple network expansion capabilities, 3 × OCP 3.0 NICs. Габариты (В × Ш × Г): 175 mm × 447 mm × 898 mm (6.89 in. × 17.60 in. × 35.35 in.).
| Чипсет | Emmitsburg PCH |
| Габариты (В × Ш × Г) | 175 mm × 447 mm × 898 mm (6.89 in. × 17.60 in. × 35.35 in.)мм |
| Вентиляторные модули | 6 or 8 × hot-swappable counter-rotating fan modules in N+1 redundancy |
| Форм-фактор | 4U AI server |
| Графические ускорители | 10 × dual-width GPU cards |
| Комплект для монтажа | L-shaped guide rails, adjustable guide rails, and holding rails |
| Локальное хранилище | Hot-swappable and flexible drive configurations: - Up to 24 × 2.5/3.5" SAS/SATA drives - Up to 12 × NVMe SSDs and 8 × SATA/SAS drives Flash storage: dual M.2 SSDs |
| Управление | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. - The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management - It is optional to configu |
| Операционные системы | SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and Ubuntu |
| Расширение PCIe | Up to 14 × standard PCIe 5.0 slots, including 10 × dedicated slots for GPU cards |
| Блок питания | 4 × 2000 W Platinum/Titanium, 2600 W Platinum, or 3000 W Titanium hot-swappable PSUs in N+N+M redundancy |
| Поддержка RAID | RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection against power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Функции безопасности | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection |
| Память | 32 × DIMMs at up to 5600 MT/s, up to 256 GB per DIMM |
| Рабочая температура | 5°C to 35°C (41°F to 95°F), compliant with ASHRAE Classes A1/A2°C |
| Процессор | 2 × 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor |
| Сетевое подключение | Multiple network expansion capabilities, 3 × OCP 3.0 NICs |
