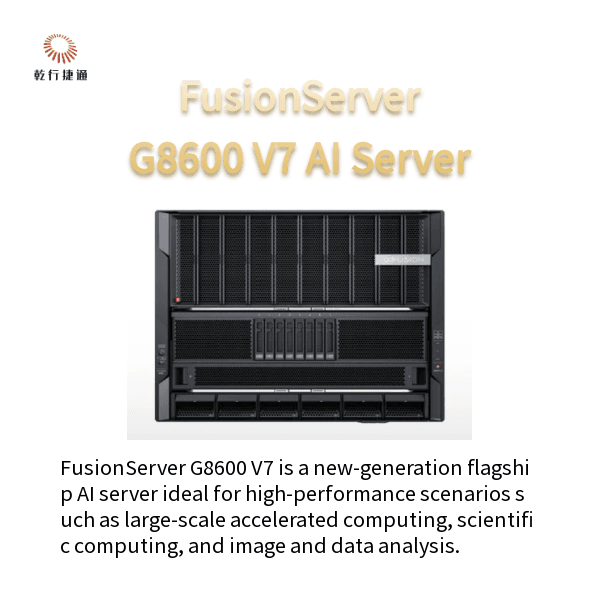

Сервер для ИИ Huawei FusionServer G8600 V7, 8U, 2× Intel Xeon Scalable 4/5-го поколения. Производитель — Huawei. Форм-фактор: 8U AI server. Чипсет: Emmitsburg PCH. Локальное хранилище: 8 x 2.5" front SAS/SATA drives + 8 x 2.5" rear NVMe SSDs Flash storage: dual M.2 SSDs. Модуль графического ускорителя: 8 x GPU modules. Вентиляторные модули: GPU: 10 x 54 V fan modules in N+1 redundancy; CPU: 5 x 12 V fan modules in N+N redundancy. Комплект для монтажа: L-shaped guide rails. Габариты (В × Ш × Г): 352.8 mm x 447 mm x 925 mm (13.89 in. x 17.60 in. x 36.42 in.).
| Чипсет | Emmitsburg PCH |
| Габариты (В × Ш × Г) | 352.8 mm x 447 mm x 925 mm (13.89 in. x 17.60 in. x 36.42 in.) |
| Вентиляторные модули | GPU: 10 x 54 V fan modules in N+1 redundancy; CPU: 5 x 12 V fan modules in N+N redundancy |
| Форм-фактор | 8U AI server |
| Модуль графического ускорителя | 8 x GPU modules |
| Комплект для монтажа | L-shaped guide rails |
| Локальное хранилище | 8 x 2.5" front SAS/SATA drives + 8 x 2.5" rear NVMe SSDs Flash storage: dual M.2 SSDs |
| Управление | The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. - The iBMC supports standard management interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management throughout the l |
| Операционные системы | Ubuntu, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, and others |
| Расширение PCIe | Up to 13 x PCIe slots, including 12 x standard PCIe 5.0 x16 slots and 1 x OCP 3.0 slot |
| Блок питания | 54 V: 6 x 3000 W Titanium hot-swappable PSUs, Cabinet-level N+N redundancy backup with 2+2, 3+1, 3+3, 4+2, and 5+1 configuration based on the load is supported. 12 V: 2 x 3000 W Titanium or 2000 W Titanium/Platinum hot-swappable PSUs in 1+1 redundancy |
| Поддержка RAID | RAID 0, 1, 10, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Функции безопасности | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, and secure boot |
| Память | 32 x DIMMs, up to 256 GB per DIMM, up to 5600 MT/s |
| Рабочая температура | 5°C to 35°C (41°F to 95°F), compliant with ASHRAE Class A1/A2/A3°C |
| Процессор | 2 x 4th/5th Gen Intel® Xeon® Scalable processors, with up to 385 W TDP per processor |
| Сетевое подключение | 2 x OCP 3.0 NICs, which can be configured as required and supports orderly hot swap |
