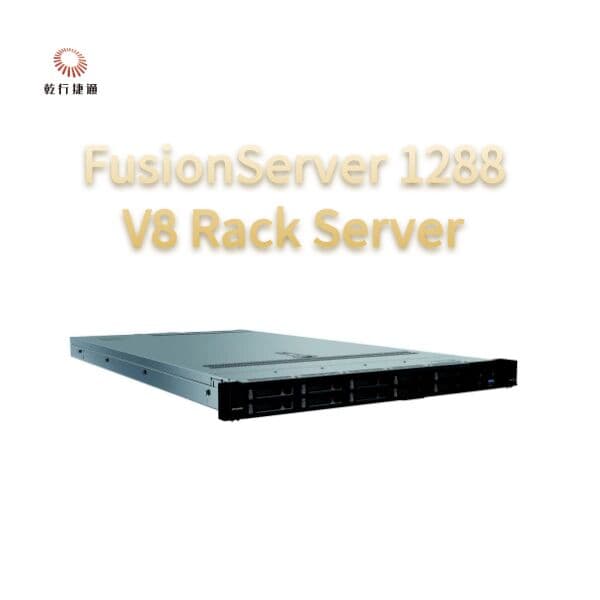

Сервер стоечный Huawei FusionServer 1288 V8, двухсокетный. Производитель — Huawei. Форм-фактор: 1U rack server. Габариты (В × Ш × Г): 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.). Вентилятор: 8 x hot-swappable counter-rotating fans in N+1 redundancy. Блок питания: 900 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy.
| Габариты (В × Ш × Г) | 43 mm x 447 mm x 798 mm (1.69 in. x 17.60 in. x 31.42 in.) |
| Вентилятор | 8 x hot-swappable counter-rotating fans in N+1 redundancy |
| Форм-фактор | 1U rack server |
| Комплект для монтажа | L-shaped guide rails, adjustable guide rails, and holding rails |
| Локальное хранилище | Hot-swappable drive configurations: - 8/10 x 2.5" SAS/SATA/NVMe drives - 4 x 3.5" SAS/SATA drives* - 16 x E3.S SSDs* - 2 x M.2 SSDs, supporting hardware RAID |
| Управление | The iBMC chip integrates one dedicated management GE port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on ment functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management.HTML5/VNC KVM, and supports out-of-band manage-It is optional to configure Fusi |
| Операционные системы | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux,Oracle, Ubuntu, and openEuler |
| Расширение PCIe | Up to 5 x PCIe slots at the rear, supporting PCIe 5.0 |
| Блок питания | 900 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy |
| Поддержка RAID | RAID 0, 1, 10, 5, 50, 6, and 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration |
| Функции безопасности | Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel,secure boot, and chassis intrusion detection |
| Память | 32 x memory slots available for DDR5 DIMMs at up to 6400 MT/s or MRDIMMs at up to 8000 MT/s |
| Рабочая температура | 5ºC to 45℃ (41ºF to 113℉), compliant with ASHRAE Class A1/A2/A3/A4°C |
| Процессор | 2 x Intel® Xeon® 6700P/6500P/6700E processors, each with up to 350 W TDP |
| Сетевое подключение | 2 x hot-swappable OCP 3.0 NICs, supporting PCIe 5.0, NCSI, and multi-host |
