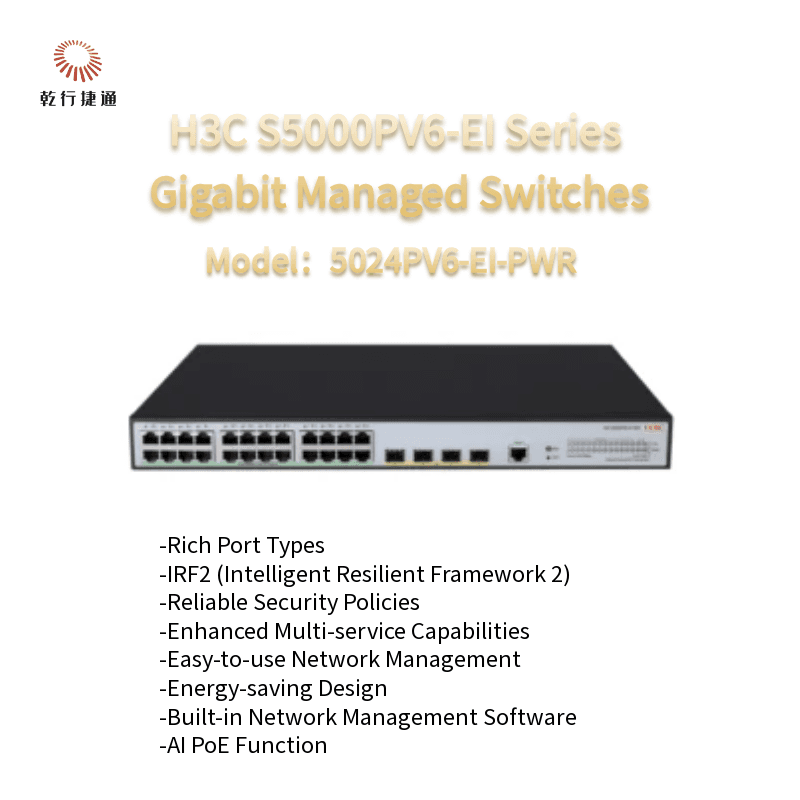

Коммутатор управляемый H3C S5024PV6-EI-PWR, гигабитный. Производитель — H3C. Коммутационная способность: 596Gbps/5.96Tbps. Порты управления: 1 x Console port. Скорость передачи пакетов: 126Mpps. Фиксированные порты: 24×10/100/1000Base-T Ethernet ports; 4×1000Base-X SFP ports.
| DHCP | Supports DHCP Relay; Supports DHCP Client; Supports DHCP Snooping |
| Возможности электрических портов | Supports half-duplex, full-duplex, and auto-negotiation modes; Supports MDI/MDI-X |
| Функции Ethernet | Supports IRF2 (max. 9 units stacking); Supports LLDP; Static MAC configuration; Supports MAC address learning count limit (max. 16K MAC address depth); Supports port mirroring and flow mirroring; Supports port aggregation (max. 8 ports per group, up to 24 groups); Supports port isolation; Supports STP/RSTP/MSTP; Supports IEEE 802.3ad (dynamic link aggregation) and static port aggregation |
| Фиксированные порты | 24×10/100/1000Base-T Ethernet ports; 4×1000Base-X SFP ports |
| IP-маршрутизация | Supports static routing |
| Порты управления | 1 x Console port |
| Многоадресная рассылка | Supports IGMP V1/V2/V3 Snooping; Supports PIM Snooping; Supports multicast VLAN; Supports IPv6 multicast settings |
| Скорость передачи пакетов | 126Mpps |
| QoS | Supports SP/WRR/SP+WRR queue scheduling; Supports 802.1p, DSCP priority mapping; Supports port rate limiting |
| Коммутационная способность | 596Gbps/5.96Tbps |
| VLAN | Supports 802.1Q (max. 4K VLANs); Supports protocol-based VLAN; Supports MAC-based VLAN; Supports GUEST VLAN; Supports VLAN mapping; Supports MVRP |
